DVC Products
|
 |
|
|
|
Digital Signage Products
|
|

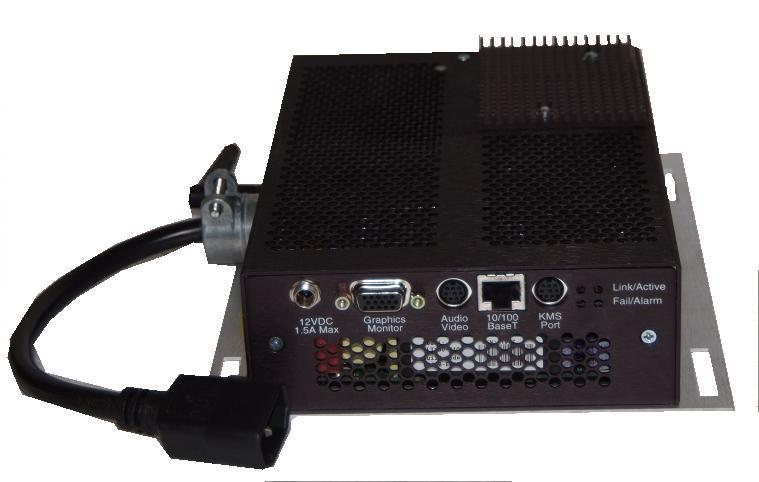

VM400 EDU Player
VM 400 is an 300MHz Intel Celeron based media player
which has an internal power supply, no fan, internal 802.11b on
PCMCIA and runs Windows CE 5.0 from 32MB of flash memory.
|
 |
VM500 EDU Media Player
VM 500 is a 650MHz Low Voltage
Intel Celeron based
media player which has an internal power supply, no fan, internal
802.11b on miniPCI and runs Windows CE 5.0. Smaller faster and
cheaper than the VM400. Audio is an option.
Video scaled output on LVDS or TTL for direct connect to an LCD
panel is also optional. |
 |
PD300 PDU Plasma Mount Media Player
For an application where the media player has to
be installed in part of the plasma mount bracket, PD300 was designed
with a fan and air filters to suit the environment. A hard disk can
be added. Runs Windows XP or Windows CE. |
 |
|

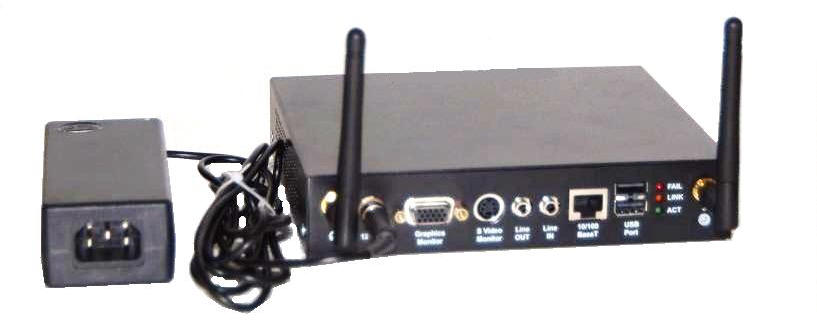

Including a 2.5" hard drive or Compact Flash
memory and running Windows CE or XP, PD510 is the current digital
signage platform for WebSign. With a 650MHz Celeron, up to 512MB of
memory and 802.11a/b/g on an internal miniPCI card, PD510 runs from
an external 12v power supply.
|
 |
Battery Powered Signage Screen
Under development, this product will allow a small screen to display
content that will be changed once or twice a day, wirelessly
connected to a base station that accesses the internet to update
content using WebSign software |
|
|
Products in development at DVC
include a new range of Media Players
|
|
PDX200 Web/ HD Video
Based on the DaVinci Chip the PDX200 will be a
low cost extremely compact player. It will use Windows CE, Websign
and a DSP enabling of HD Video playback
|
|
PDX600 Rich Content HD
Based on the latest low power Intel platform
includes XP
Embedded and HD playback in a very compact, fanless and
diskless design |
|
PDX800 Fast Graphics HD
A more powerful solution for Full HD Video
and Graphics based on desktop design in a small form factor for
Digital Signage applications. |
|
Cable Television Products
|
|
AVIS800
The original DVC Product, the
AVIS800 is the enabler for the DEC Local Cable Advertising system.
It handled video processing and DTMF tone detection.
|
|

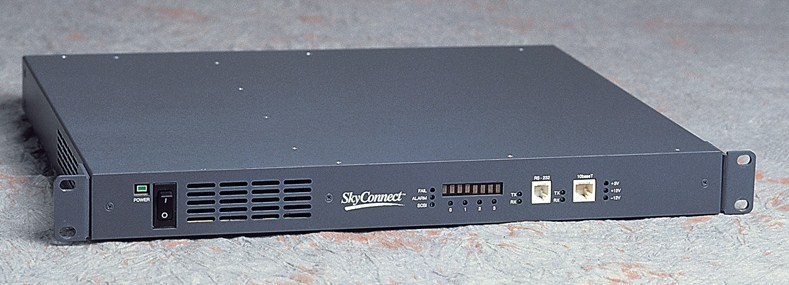

MDS420 4 Channel Decoder Switch
Integrating 4 channels
of MPEG decoding and a SCSI-2 interface to the server
provided the system with a significant cost and space
reduction. Hot-swap board and power supply. Analog signal
processing for level matching and signal measurement.
|
 |
MDS440 4 Channel Decoder Switch
MDS445 4 Channel Decoder Switch
A single board design enabled cost reduction |
 |

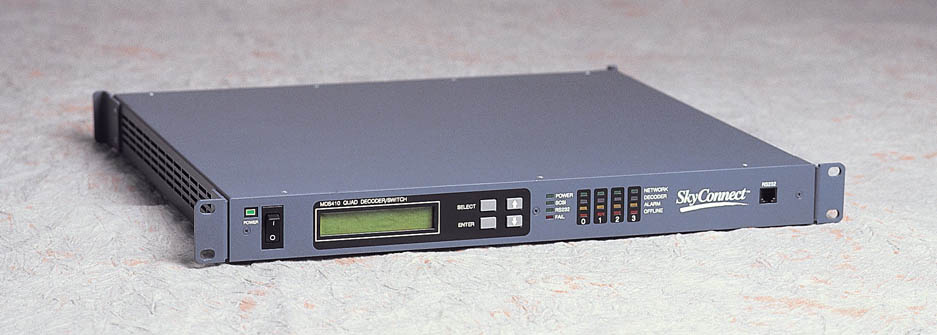

MDS410 4 Channel Decoder Economy Switch
Removing much of the
audio signal processing reduced the cost
further |
|
MDS480 8 Channel 4 Decoder Switch
For inserting 8 Channels of video using
only 4 decoders. Software functions enabled decoder sharing. |
 |
MTS160 16 Channel Queue Trigger Gateway (Scout)
Reads DTMF tone
triggers and generates IP messages to trigger DPI
ad-insertion systems.
|
 |
MDR800 8 Channel 8-VSB Receiver IP Gateway(Eagle)
MDR800 has 2x GigE,
16xDVB/ASI inputs and internally up to 16 DSPs which can be combined
to scale, insert logos, time delay, stream switch, de-multiplex and
re-multiplex multiprogram video streams. Focus is currently on a
device to receive 8 channels of ATSC (local network terrestrial
digital TV) and IP-encapsulate over GigE for processing at a Cable
Headend. |
 |
